Multimedia over Coaxial (MoCA) technology is designed with advanced modulation technology to increase the trasmission and the receiving speeds of Ethernet packets to reach 2.5 Gbps Ethernet with the new MoCA 2.5 technology.

The operating frequency can be programmed to avoid conflict agaist Digital Video Broadcasting (DVB) signals, so that both video and data content can be multiplexed to deliver triple-play service over single coaxial cable.

Highlights of MoCA 2.5 Adapters
❖ Boost the speed and performance of home networking to reach up to 2.5 Gbps Ethernet
❖ Configurable high-frequency modulation (1.1GHz to 1.6GHz) allows Cable TV (DOCSIS 3.0/3.1), Satellite TV or other TV signal overlay without interference
❖ Turn any coaxial outlet to high-speed Ethernet / IP connection for high-definition video streaming, and high-speed Internet
❖ Supplement and extend the existing Wi-Fi network with high-speed wired connection over in-home coaxial drops
❖ Enable tablets, smart phones, gaming APPs/consoles and 4K/8K HDTV to access content simultaneously
❖ Work over the existing home coaxial wirings without re-wiring of Ethernet cables
❖ Plug-and-play installation with MoCA Protection Setup (MPS) to deliver both high-definition TV content and high-speed data to every room inside home
❖ Dual-band 2.4GHz and 5GHz 802.11 b/a/g/n/ac Wi-Fi Access Point (MN2580W only) over coaxial wirings to reach wired speed and coverage reliability for content transfer between smart devices
❖ Support IPv4 / IPv6, TR069, DHCP and Web configuration
❖ Up to 16 MoCA 2.5 adapters and/or Access Points can be connected to build Home Network with Wi-Fi coverage over coaxial cabling in house

MN2525 MoCA 2.5 Adapter, 1 x 1000Base-T, 75Ω F MoCA (1.1 to 1.6GHz), 75Ω F CATV (5MHz to 1.2GHz).
2.0 Gbps line rate, 50dBmV output, -20dBmV minimum input.

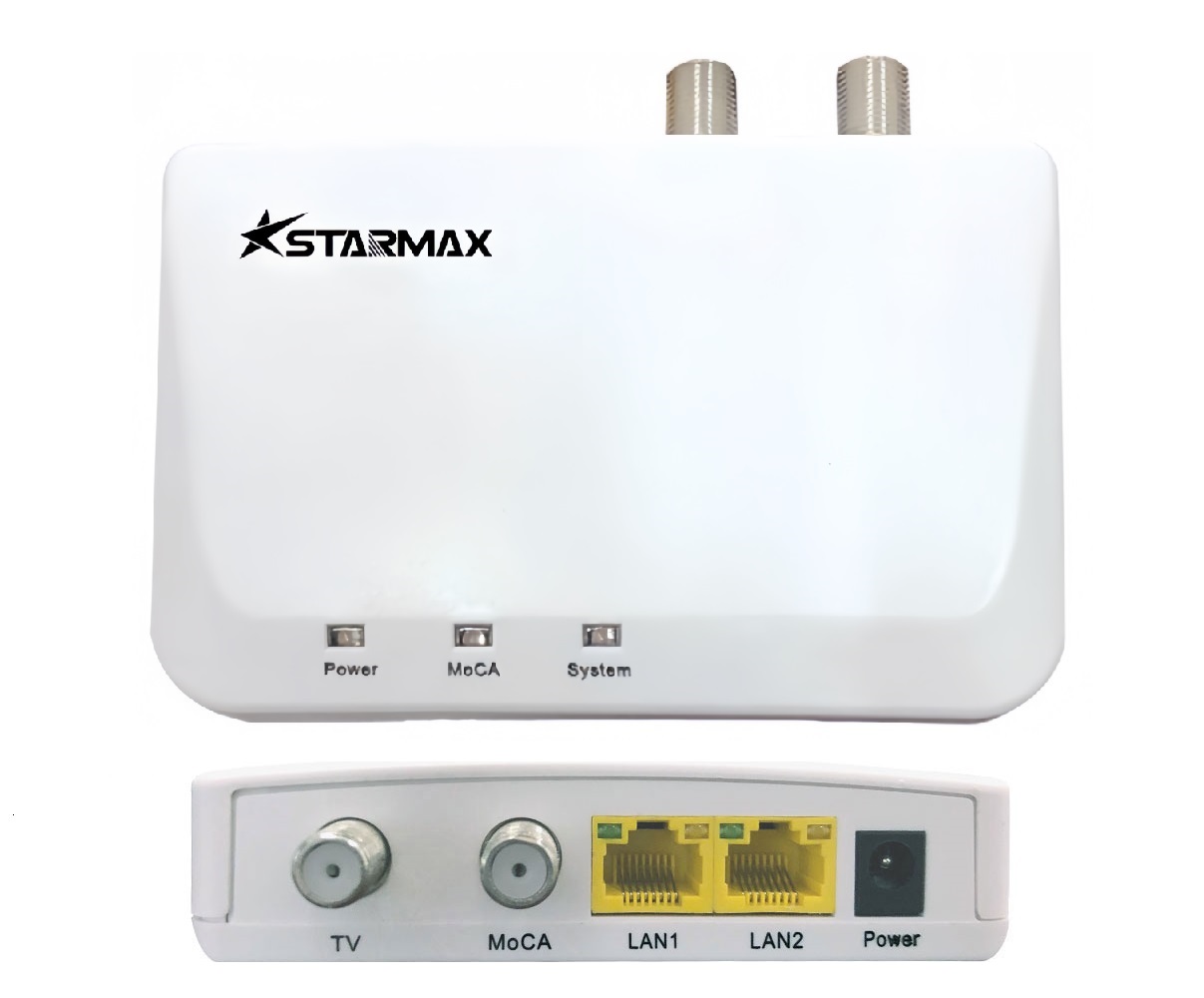

MN2550 MoCA 2.5 Adapter, 2 x 1000Base-T, 75Ω F MoCA (1.1 to 1.6GHz), 75Ω F CATV (5MHz to 1.2GHz).
2.5 Gbps line rate, 50dBmV output, -20dBmV minimum input.

MN2580W MoCA 2.5 Access Point, 4 x 1000Base-T, 802.11 b/g/n/ac, 75Ω F MoCA (1.1 to 1.6GHz), 75Ω F CATV (5MHz to 1.2GHz).
2.0 Gbps line rate, 50dBmV output, -20dBmV minimum input.
