HDMI/CVBS/SDI to RF modulator delivers HDMI, CVBS or 3G-SDI video to TV's in ATSC, J.83B QAM, DVB-C or ISDB-T/DVB-T 1080p High-Definition (HD) channels over coax network. Single- or multi-channel programs can be configured in specific frequency range with selectable 6, 7, or 8MHz bandwidth.
Multiple modulators can be cascaded to increase the number of channels to support SMATV system. They are great choice to compose and transport video/audio signal from Satellite/Cable TV set-top box, survellance camera, video streaming device or any HDMI media player.
HDMI to IP encoder covnerts HDMI video/audio to H.264/AVC IP streams and deliver IPTV streaming to smart devices or streaming servers over Internet, Wi-Fi or Local Area Network (LAN).
IP streaming can also reach specific modulator to convert H.264/AVC IP streams to ATSC, J.83B QAM RF signal to deliver IPTV over coax network.
❖ Distribute HDMI/CVBS/SDI source videos from set-top box, DVD player, surveillance camera, or video streaming device to TVs over coax network
❖ Convert any HDMI/CVBS/SDI video source in 720p, 1080i, or 1080p resolution to all TV standards - J.83B DVB-C QAM, ATSC, DVB-T or ISDB-T(b)
❖ Add extra HD quality H.264/AVC or MPEG-2 video with AC3 Dolby audio to the existing Broadcasting or Cable TV channels
❖ Intuitive on-panel LCD and Web based configuration
❖ Compact, reliable, durable, expandable and cost-effective HDMI/CVBS/SDI to RF modulator for home and business applications

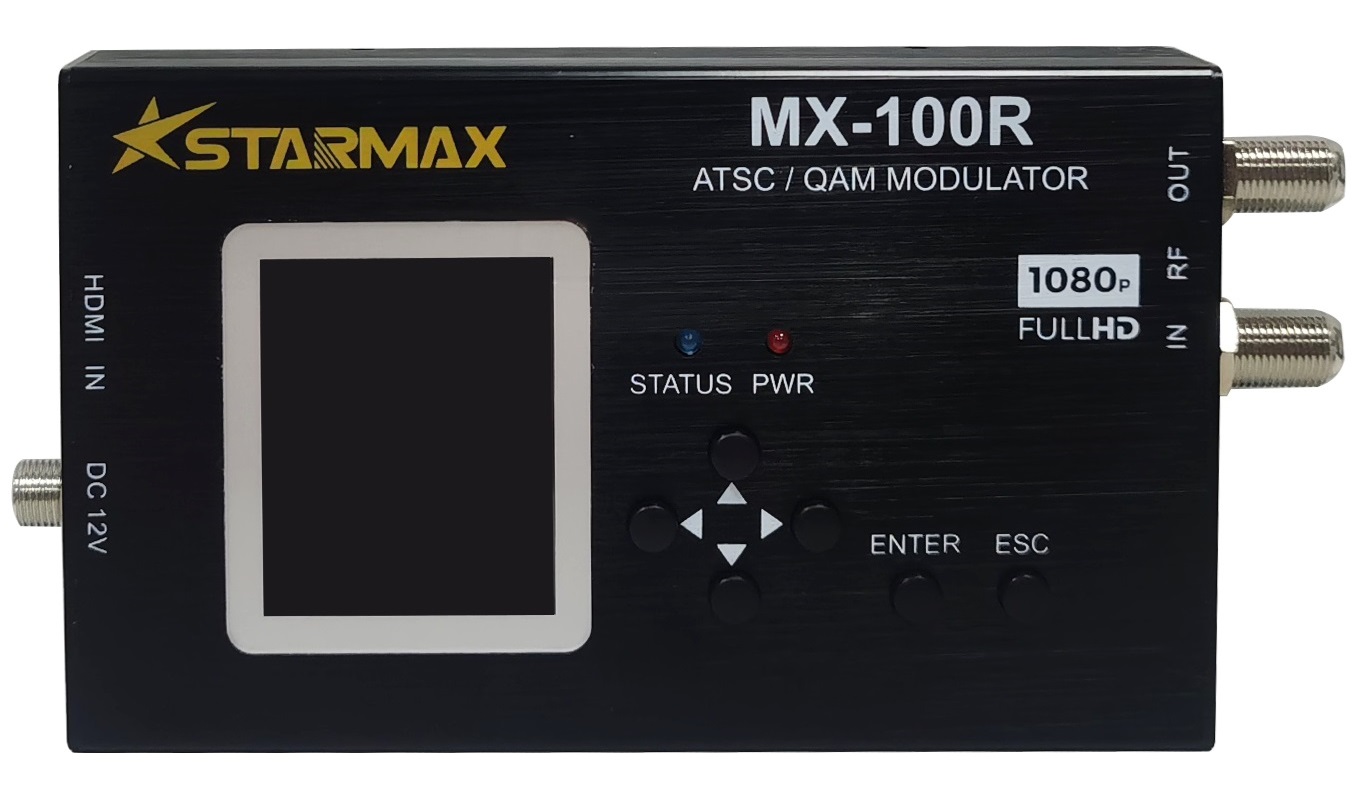

MX-100R
Single Channel HDMI to ATSC and J.83B QAM (50 to 860MHz) Modulator, 75Ω F
2.4" LCD and Keypad Operation, OFDM Modulation, MPEG-2 Video Encoding with AC3 Audio, Video HD Input/Output up to 1080p@60, 6MHz Output Signal Bandwidth, 9 to 40dBmV Output Power Level, AES Scramble. Rack Mountable.
MX-200
Single Channel HDMI and CVBS to ATSC and J.83B QAM (50 to 860MHz) Modulator, 75Ω F
2.4" LCD and Keypad Operation, OFDM Modulation, MPEG-2 Video Encoding with AC3 Audio, Video HD Input/Output up to 1080p@60, 6MHz Output Signal Bandwidth, 9 to 40dBmV Output Power Level, AES Scramble. Rack Mountable.

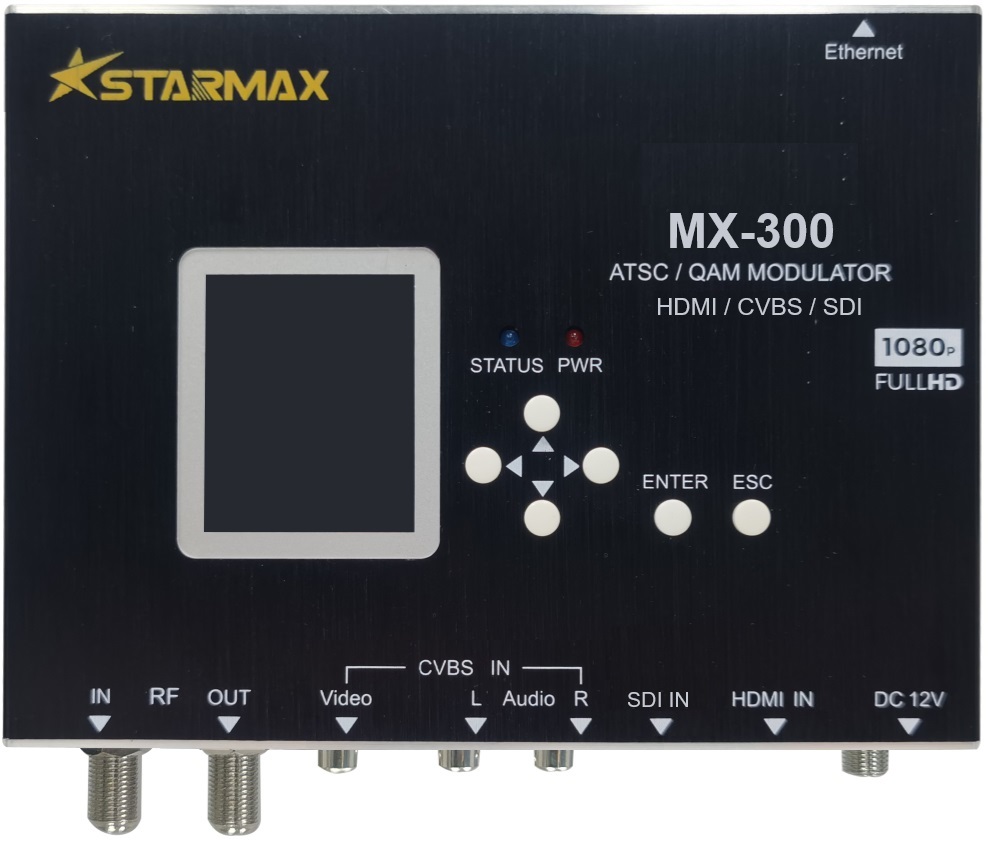

MX-300
Single Channel HDMI, CVBS and 3G-SDI to ATSC and J.83B QAM (50 to 860MHz) Modulator, 75Ω F
2.4" LCD and Keypad Operation, OFDM Modulation, MPEG-2 Video Encoding with AC3 Audio, Video HD Input/Output up to 1080p@60, 6MHz Output Signal Bandwidth, 9 to 40dBmV Output Power Level, AES Scramble. Rack Mountable.

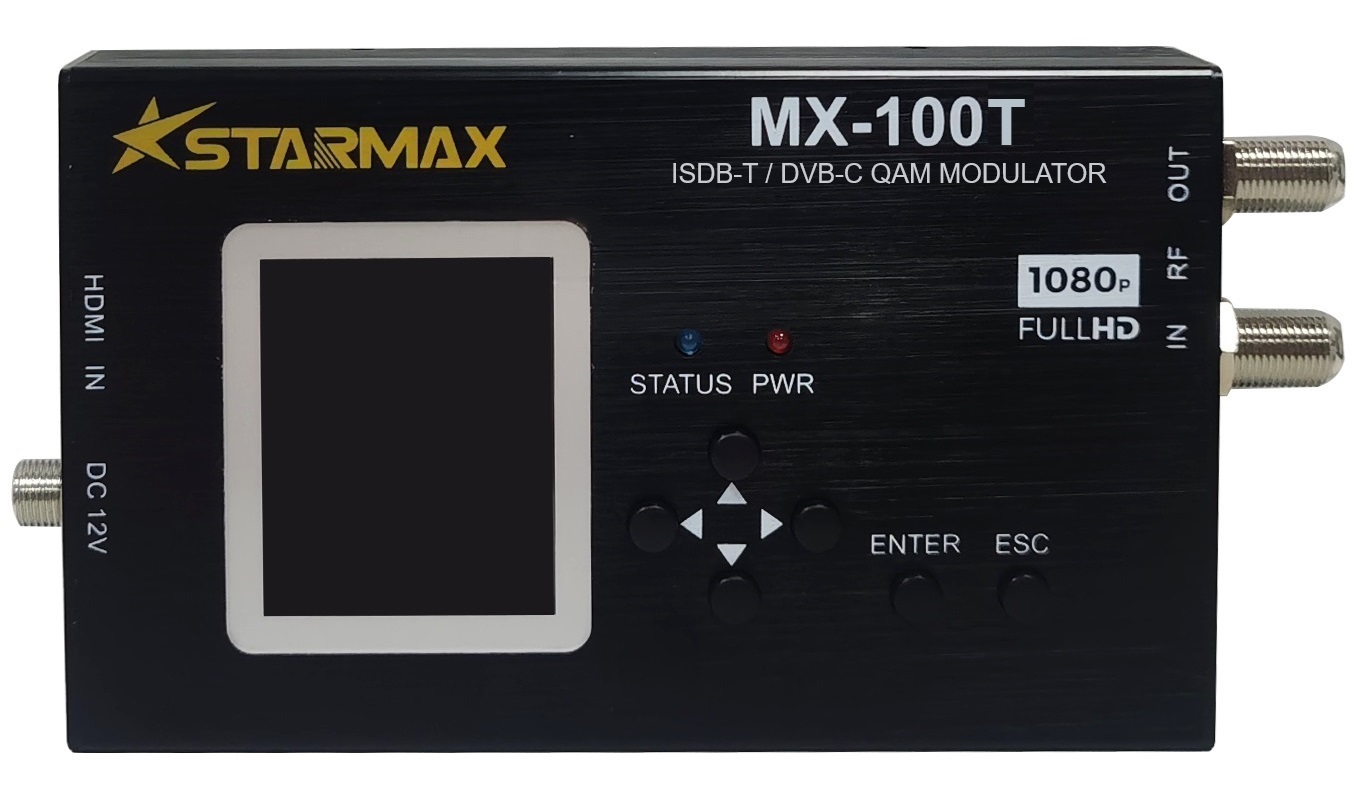

MX-100T
Single Channel H.264 HDMI to DVB-T/ISDB-T and DVB-C (J.83A) (50 to 860MHz) Modulator, 75Ω F
2.4" LCD and Keypad Operation, OFDM Modulation, H.264/AVC Video Encoding with AC3 Audio, Video HD Input/Output up to 1080p@60, 7MHz or 8MHz Output Signal Bandwidth, 9 to 40dBmV Output Power Level, AES Scramble. Rack Mountable.
❖ Convert HDMI source videos from set-top box, DVD player, surveillance camera, or other video devices to IP streams and deliver IPTV streaming over Internet, Wi-Fi or Local Area Network (LAN)
❖ IP streaming can reach cloud servers, smart/Android TV's, IP/Android set-top boxes, computers, cell phones, tablets or RF modulators for broader viewing audience
❖ Add extra HD quality H.264/AVC or MPEG-2 video with AC3 Dolby audio to the existing Broadcasting channels
❖ Intuitive Web based configuration
❖ Compact, reliable, durable, expandable and cost-effective HDMI to IP streaming encoder/modulator for home and business applications

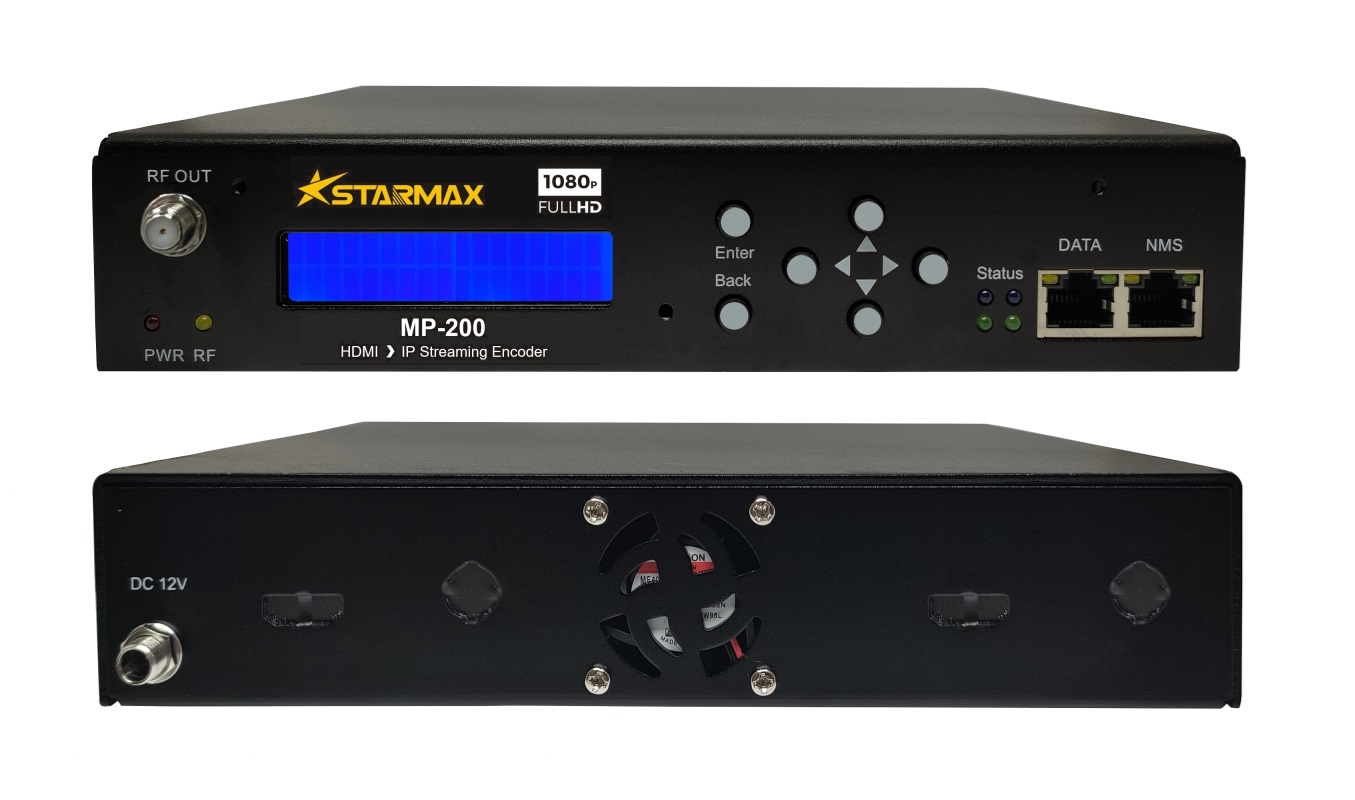

MP-200
Dual Channel HDMI to H.264 IP Streaming Encoder, UDP/RTP/HLS/HTTP SPTS/MPTS
Converting Various HDMI Video/Audio Source to IP Streams for Delivery of IPTV over Internet, Wi-Fi or Local Area Network (LAN).

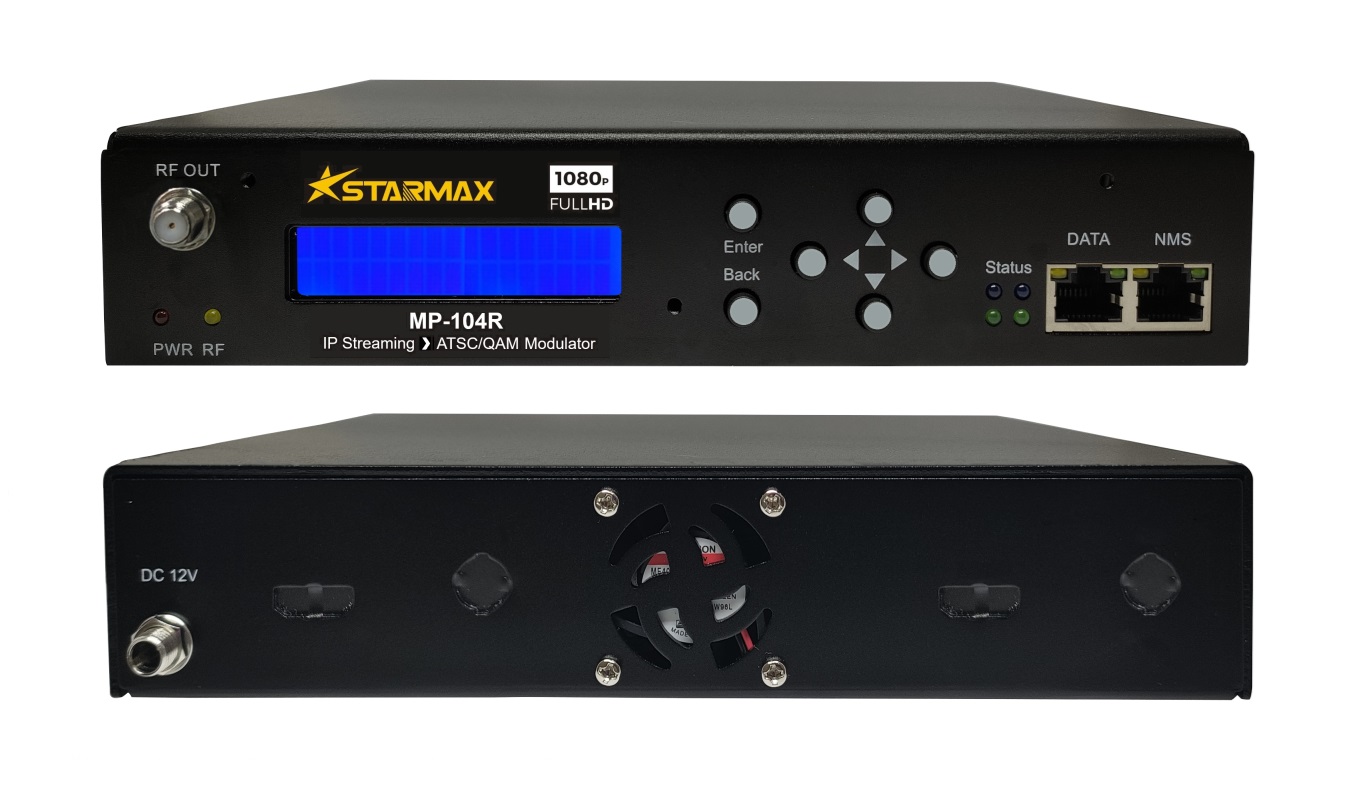

MP-104R
Quad Channel H.264 IP Streams to ATSC/J.83B QAM Modulator, 75Ω F
Converting IP Streams from Interent or Local Area IP Network (LAN) to ATSC/J.83B QAM Modulation for Delivery of IPTV over Coax Network.
OFDM Modulation, MPEG-2 Video Encoding with AC3 Audio, Video HD Output up to 1080p@60, 6MHz Output Signal Bandwidth, 9 to 40dBmV Output Power Level, AES Scramble.
❖ Programmable Terrestrial TV and Cable TV channel filter, combiner, converter, equalizer and amplifier
❖ Capture and compose 32 TV channels to multiplex output channel plan with Automatic Gain Control (AGC)
❖ Support all TV standards - ATSC, DVB-T, ISDB-T(b), DVB-C with 6, 7 or 8 MHz channel bandwidth
❖ 4 input ports with integrated preamplifier and 12 VDC (antenna) power supply
❖ Adjustable output power level between 33 and 53 dBmV to drive signal coverage of multiple TVs
❖ Intuitive on-panel LCD and Web based configuration
❖ Compact, reliable, durable, expandable and cost-effective TV channel filter for home and business applications
ST-8802
32-Channel Digital TV Filtered Agile Modulator (174 to 862MHz), 75Ω F
4 x 75Ω F Cable or Aerial TV input with Preamplifier and 12VDC (Antenna) Power Supply, 1 x 75Ω F CATV or Aerial TV Output, 2.4" LCD and Keypad Operation, 9 to 53dBmV Output Power Level.
