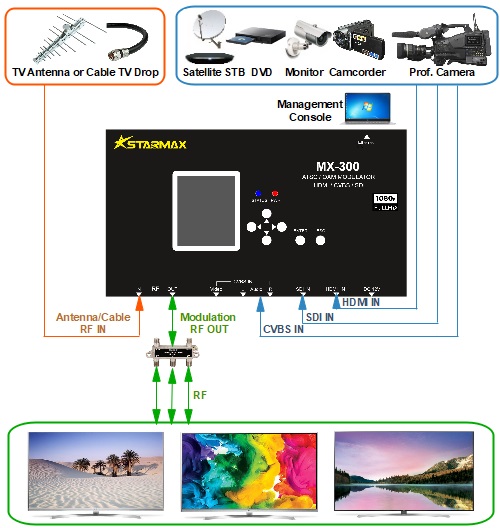

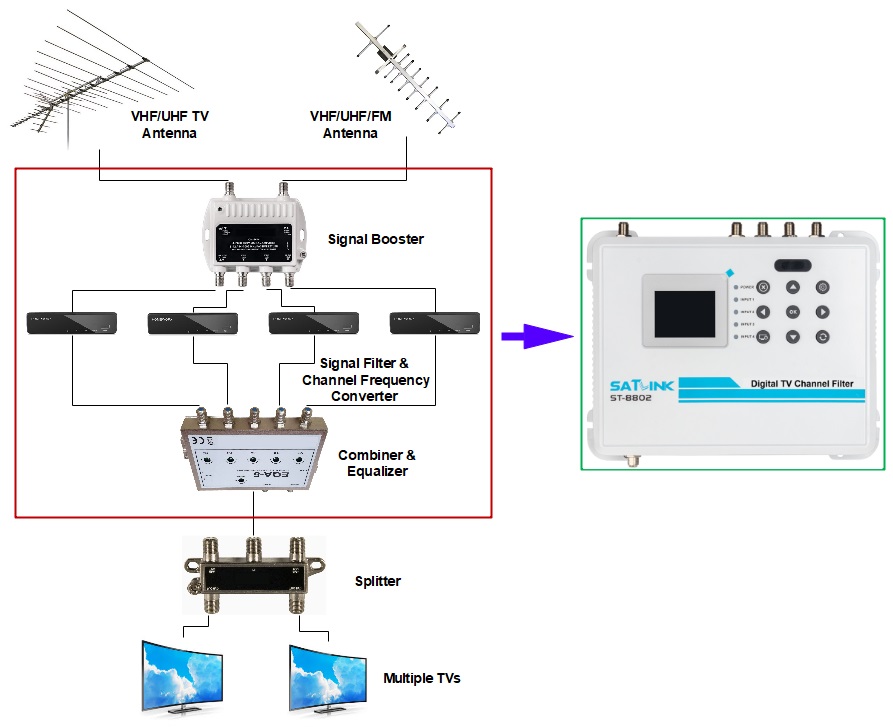

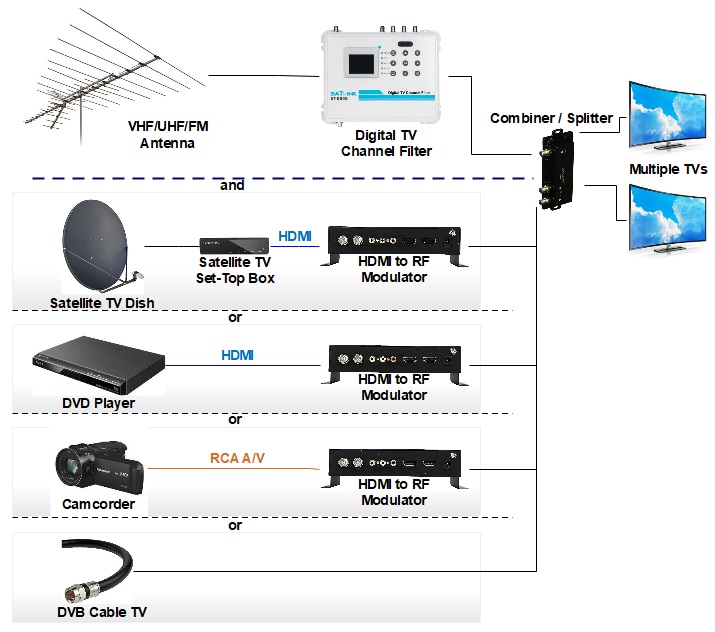

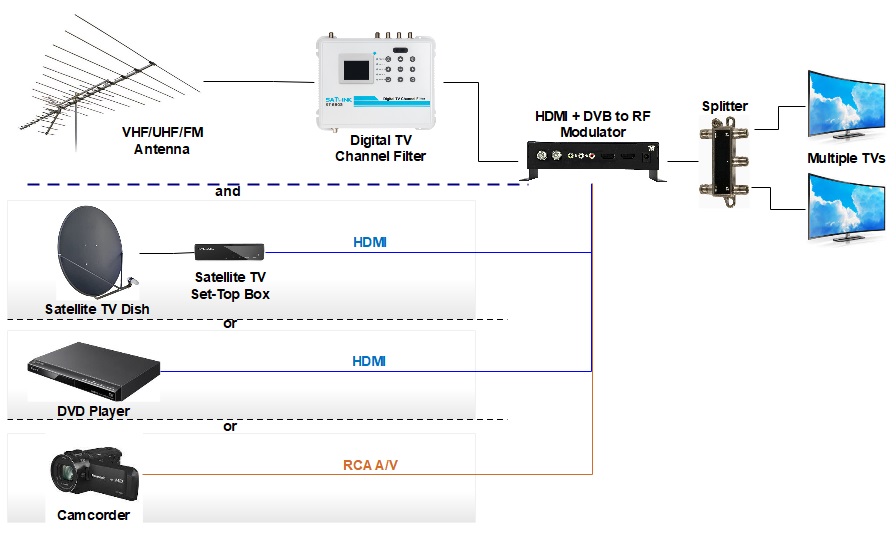

Universal HDMI to RF modulators and/or digital TV channel filter composes the signal from various video/audio sources, e.g. Satellite/Cable/Terrestrial TV drop or set-top box, DVD/Blue-Ray player, camcorder, surveillance camera, video streaming device, or any HDMI media, to single- or multi-channel high-definition (HD) digital program in DVB or ATSC format. The output of modulator/filter can then be multiplexed with signal of high-speed Ethernet/IP data with MoCA adapters to deliver triple play service to rooms/homes in multi-dwelling unit (MDU) over single coaxial cable.
The re-modulator is a device in Cable/Satellite/Terrestrial TV plant to receive open-circuit television signal. The input transport stream (TS) directly feeds to the modulation chip, adjusts the modulation output mode, and thereby converts the open-circuit television signal into the closed-circuit system to deliver digital video content to subscribers with
❖ Output Power10dBmV to 40dBmV
❖ Resolutionup to 1920 x 1080
❖ Channel Bandwidth6MHz, 7MHz or 8MHz
❖ LNB Power18VDC
Hotels, restaurants, digital signage, apartment complex, or office buildings can take advantage of the exiting cable wirings to deliver high-speed data and Wi-Fi together with video content without laying fibers to penetrate windows, walls and ceilings. The Ethernet over Coax data service is independent on Access technology used to deliver high-speed data pipe after EPON, GPON, XG-PON1/2, 10G-EPON or 5G fronthaul.
Input
❖ HDMI
❖ DVB-T75Ω F
❖ ISDB-T/Tb75Ω F
❖ ATSC75Ω F
❖ DVB-C (J.83A/B)75Ω F
❖ RCA (Optional)A/V Jack
Output 75Ω F
❖ DVB-T50MHz to 860MHz
❖ ISDB-T/Tb50MHz to 860MHz
❖ DVB-C (J.83A/B)5 to 860MHz
❖ ATSC150MHz to 850MHz
Input
❖ DVB-T75Ω F
❖ ISDB-T/Tb75Ω F
❖ ATSC75Ω F
❖ DVB-C (J.83A/B)75Ω F
Output 75Ω F
❖ DVB-T174MHz to 862MHz
❖ ISDB-T/Tb174MHz to 862MHz
❖ DVB-C (J.83A/B)174 to 862MHz
❖ ATSC174MHz to 862MHz
Ethernet / IP
❖ Hi-Band1.1GHz to 1.6GHz
800Mbps to 2.5Gbps
❖ Low-Band5MHz to 95MHz
300 to 600Mbps

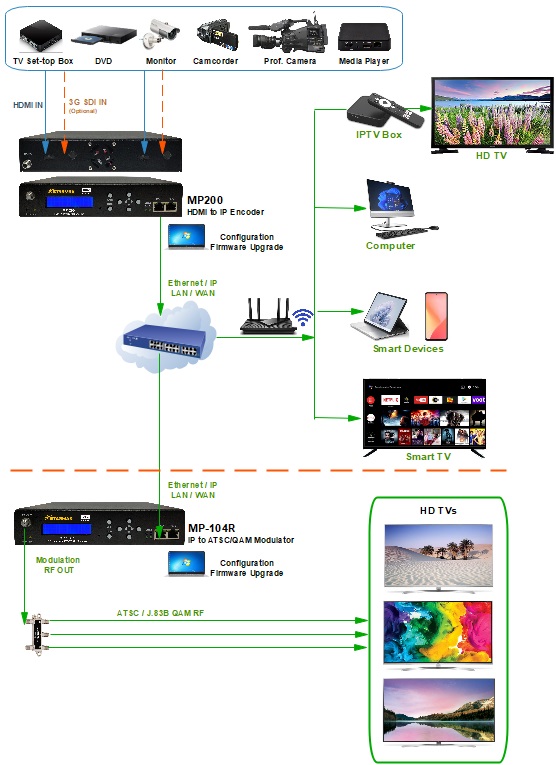

With higher Ethernet/IP speed over coaxial and Wi-Fi coverage, both IPTV and Broacast TV can be delivered to TVs, tablets and smart phones inside the building.
